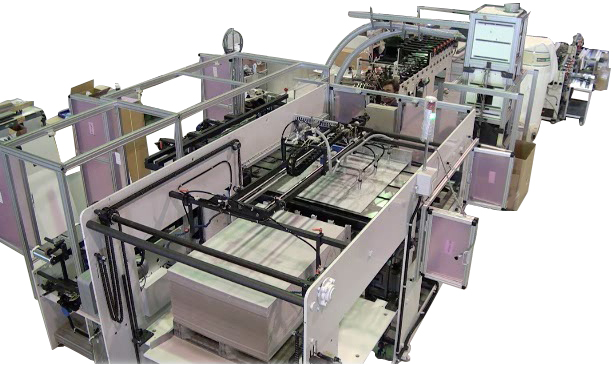

V Cutting Box(Stacked Box)Frame Making Machine
This V cutting box(stacked box) frame making machine just need to be set the paper and the system will finish all the works like cutting, W grooving, gluing and folding by 30~40 pcs per minute.
One operator can do all the operation easily.
The best solution to improve working efficiency.
One operator can do all the operation easily.
The best solution to improve working efficiency.
-
V Grooving
The depth of V groove can be adjusted by regulator with micro gauge and easily be operated by anyone. -
Dust Collecting
V-cutted waste is automatically sucked up by a dust collector. -
Folding
After glued, paper board be folded and pressed by a row of pressing rollers.
- SPECIFICATION
- EFFECTIVE DIMENSION
- MACHINE DIMENSION
- FLOW CHART
- VIDEO
| Speed | 30~40 pcs/min |
|---|---|
| Electrical power | AC200V 3Phace ≒11.0Kw |
| Material caliper | Various of chipboard paper |
| Accessories | Spare V blade ,dust collector, V blade polishing machine |
| Air | Under 250NL/min(0.5Mpa) |
| Option | Air Compressor |
