Super Sheet Laminator SL-1300CDR
The newest model of laminator. Vacuum transport for both printed paper and single-faced corrugated board, ensures adjustment of production capacity according to the size.
Max. 9000 sheets/h with high accuracy.
Size setting can be changed automatically which minimize your downtime.
Max. 9000 sheets/h with high accuracy.
Size setting can be changed automatically which minimize your downtime.
-
Transport section
Vacuum transport for printed paper, ensures excellent precision lamination even when paper is thin.
Laminating is available from dimension 788x1091 90kg. -
High speed feeder
Original high-speed feeder system efficiently ensures corrugated board G~B flute and cardboard can be transported in high speed. -
Gluing unit
Independence structure of gluing unit, easy to adjustment and maintenance. -
Double paper detector
Double paper detector for printed paper ensures the defective products eliminated and reduces the waste. -
Reversal device
Reversal and pile device for laminated sheet, ensures the sheets be piled flat even when curled.
- SPECIFICATION
- EFFECTIVE DIMENSION

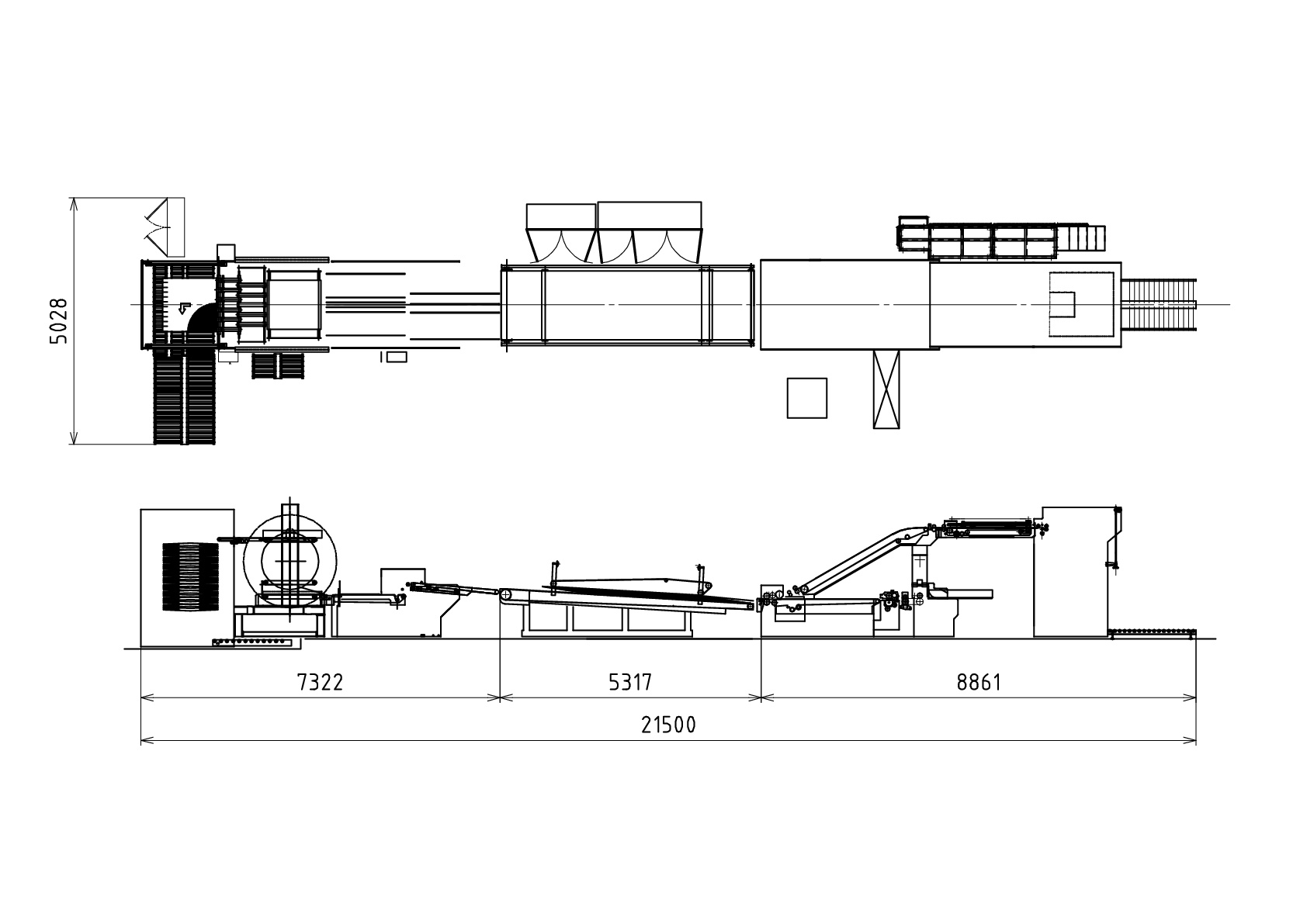

- MACHINE DIMENSION
- FLOW CHART
- VIDEO
| Speed | 150 sheet/min |
|---|---|
| Electrical power | ≈44kw/AC200V 3phase |
| Material caliper (Top sheet) | Cardboard 105～600g/㎡ |
| Material caliper (Bottom sheet) | Corrugated and Cardboard 310g/㎡~ |
| Glue | Polyvinyl alcohol and vinyl acetate etc. normal temperature adhesive |
| Option | Air Compressor 5.5kw |

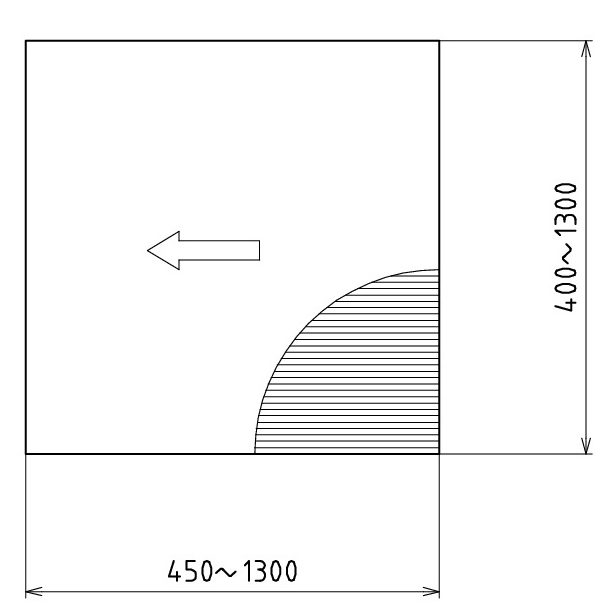

Length (Flowing)：450～1300mm
Width：400～1300mm
